Introduction

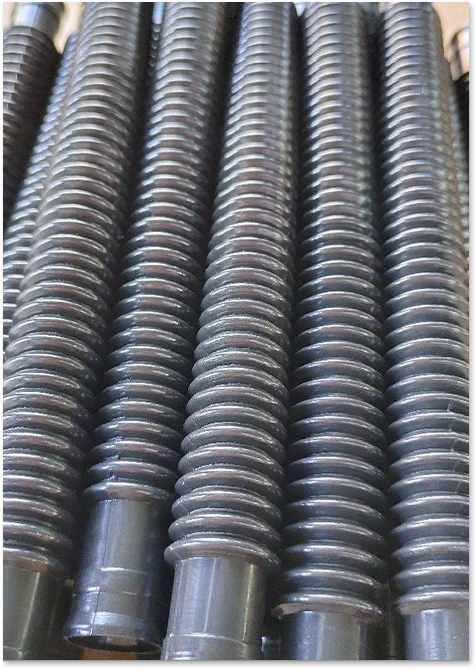

The metal cone washer is a specialized fastener component integral to bolted joint design across numerous industries including automotive, aerospace, construction, and heavy machinery. Unlike flat washers, its conical shape introduces a deliberate geometric feature designed to provide a defined compression load and enhance the sealing characteristics of the joint. This technical guide will provide an in-depth examination of metal cone washers, encompassing material science, manufacturing processes, performance engineering, failure analysis, and relevant industry standards. The primary function of a cone washer is to compensate for irregularities in the bearing surfaces of connected components, maintain consistent preload, and prevent loosening due to vibration and thermal cycling. Its effectiveness relies on precise material selection and dimensional control during manufacturing, critical aspects that will be detailed herein. A core industry pain point addressed by optimized cone washer design is the reduction of bolt loosening and associated maintenance costs, particularly in high-vibration applications. Improper washer selection can lead to premature joint failure, jeopardizing structural integrity and system performance.
Material Science & Manufacturing
Metal cone washers are commonly manufactured from carbon steels (e.g., SAE 1045, ASTM A36), alloy steels (e.g., 4140, 4340), and stainless steels (e.g., 304, 316). Material selection depends on the operating environment, load requirements, and corrosion resistance needs. Carbon steels offer high strength at a lower cost but are susceptible to corrosion. Alloy steels provide enhanced strength, toughness, and wear resistance, making them suitable for demanding applications. Stainless steels excel in corrosion resistance, making them ideal for marine and chemical processing environments. The raw material typically arrives in the form of wire rod or strip stock. Manufacturing processes predominantly involve cold heading or stamping. Cold heading, a forging process performed at room temperature, offers excellent material utilization and produces washers with high dimensional accuracy. Stamping, suitable for large-volume production, utilizes dies to cut and form the washer shape from sheet metal. Key parameters in manufacturing include die geometry, blanking force, heading upset, and post-processing treatments. Heat treatment (e.g., hardening, tempering) is often employed to achieve the desired mechanical properties, such as yield strength and tensile strength. Surface treatments like zinc plating, phosphate coating, or passivation are used to enhance corrosion resistance and improve lubricity. Material chemical composition is verified through spectroscopic analysis, ensuring adherence to specified standards. Metallurgical microstructure examination confirms the efficacy of heat treatment processes and identifies potential defects like porosity or inclusions. The cone angle, a critical dimension, is rigorously controlled during manufacturing to ensure proper load distribution and sealing performance. Precise control of the material's grain structure is also paramount, as grain orientation significantly influences fatigue resistance.
Performance & Engineering
The performance of a metal cone washer is fundamentally governed by its ability to develop and maintain preload in a bolted joint. Preload is the tensile force generated in the bolt when it is tightened, and it is crucial for preventing joint separation and fatigue failure. The conical shape of the washer allows it to deform elastically under compression, creating a spring-like action that compensates for thermal expansion and contraction, as well as creep and relaxation in the joint materials. Force analysis involves considering the geometry of the washer, the material properties, and the applied load. Finite element analysis (FEA) is frequently used to simulate the stress distribution within the washer and optimize its design for specific applications. Environmental resistance is a critical performance parameter. Washers exposed to corrosive environments must exhibit adequate resistance to pitting, crevice corrosion, and galvanic corrosion. This is achieved through material selection (e.g., stainless steel) and surface treatments (e.g., passivation). Compliance requirements vary depending on the industry and application. For example, aerospace applications often require washers to meet stringent specifications outlined in AMS standards. Automotive applications may necessitate compliance with IATF 16949 quality management system requirements. Functional implementation considerations include the selection of appropriate washer size and material for the bolt diameter, joint load, and operating temperature. Proper installation procedures, including the use of calibrated torque wrenches, are essential to ensure accurate preload and prevent over-tightening or under-tightening.
Technical Specifications
| Material Grade | Conical Angle (Degrees) | Hardness (Rockwell C) | Tensile Strength (MPa) |
|---|---|---|---|
| SAE 1045 | 60 | 30-35 | 620-758 |
| ASTM A36 | 60 | 25-30 | 400-550 |
| 4140 | 60 | 35-45 | 860-1030 |
| 304 Stainless Steel | 60 | 20-25 | 517-724 |
| 316 Stainless Steel | 60 | 20-25 | 586-862 |
| Spring Steel (DIN 6889) | 60 | 40-50 | 900-1200 |
Failure Mode & Maintenance
Metal cone washers are susceptible to several failure modes, including fatigue cracking, plastic deformation, corrosion, and fretting corrosion. Fatigue cracking occurs due to repeated loading and unloading, initiating at stress concentration points such as the inner and outer diameters of the washer. Plastic deformation can occur if the applied load exceeds the material’s yield strength, leading to permanent set and loss of preload. Corrosion, particularly in aggressive environments, can degrade the washer material, reducing its strength and cross-sectional area. Fretting corrosion, a combination of corrosion and wear, occurs when there is small-amplitude oscillatory movement between the washer and the contacting surfaces. Failure analysis techniques such as fracture surface examination (using scanning electron microscopy) and metallographic analysis are used to identify the root cause of failure. Maintenance involves regular inspection of bolted joints to detect signs of loosening or corrosion. Torque checks should be performed periodically to ensure that the preload remains within the specified range. If corrosion is detected, the washer should be replaced with a corrosion-resistant alternative. Lubrication of the bolt and washer threads can help to reduce friction and prevent fretting corrosion. In high-vibration applications, the use of locking mechanisms, such as prevailing torque nuts or thread-locking compounds, can further enhance joint security and prevent loosening. Proper washer storage is also crucial; they should be protected from moisture and contaminants to prevent corrosion. Regular replacement schedules, based on operating conditions and risk assessment, can mitigate the risk of catastrophic failure.
Industry FAQ
Q: What is the primary advantage of using a cone washer over a flat washer in a high-vibration application?
A: The primary advantage lies in the cone washer’s ability to maintain consistent preload. Its conical shape allows it to compensate for surface irregularities and thermal expansion/contraction, effectively resisting loosening caused by vibration. A flat washer simply distributes load; it does not actively work to maintain consistent clamping force.
Q: Can different cone angles be used, and what is the impact of the cone angle on performance?
A: Yes, different cone angles can be used, though 60 degrees is most common. A steeper cone angle will result in a higher spring rate and greater resistance to loosening, but it may also increase stress concentration. A shallower angle provides less resistance to loosening but distributes the load over a wider area. The optimal angle depends on the specific application and load requirements.
Q: What material is best suited for a cone washer used in a seawater environment?
A: 316 Stainless Steel is the preferred material for seawater applications due to its superior corrosion resistance compared to 304 Stainless Steel or carbon steel. The addition of molybdenum in 316 provides enhanced resistance to chloride pitting and crevice corrosion.
Q: How do I determine the appropriate size cone washer for a given bolt?
A: The washer's inner diameter should closely match the bolt’s minor diameter (root diameter of the threads). The outer diameter should be large enough to distribute the load effectively. Manufacturers’ catalogs typically provide sizing guides based on bolt diameter and material grade. It’s critical to verify compatibility with the mating surfaces.
Q: What is the impact of improper torque application on the performance of a cone washer?
A: Improper torque application—either over-tightening or under-tightening—can significantly reduce the washer's effectiveness. Over-tightening can cause plastic deformation, leading to preload loss. Under-tightening results in insufficient clamping force, increasing the risk of loosening and joint failure. Calibrated torque wrenches are essential for accurate preload control.
Conclusion
Metal cone washers represent a crucial, yet often underestimated, component in bolted joint design. Their unique geometry and material properties allow them to effectively manage preload, compensate for surface imperfections, and enhance the reliability of mechanical connections, especially in demanding environments. Correct material selection, precise manufacturing control, and proper installation are all critical factors influencing performance and longevity.
Future advancements in cone washer technology may focus on developing new materials with enhanced fatigue resistance and corrosion protection, as well as optimizing washer designs through advanced simulation techniques. Standardization of testing protocols and performance metrics would also be beneficial to facilitate product comparison and ensure consistent quality across different manufacturers. Ultimately, a comprehensive understanding of the principles governing cone washer behavior is essential for engineers and procurement professionals seeking to maximize the performance and lifespan of their bolted joint systems.
