Introduction

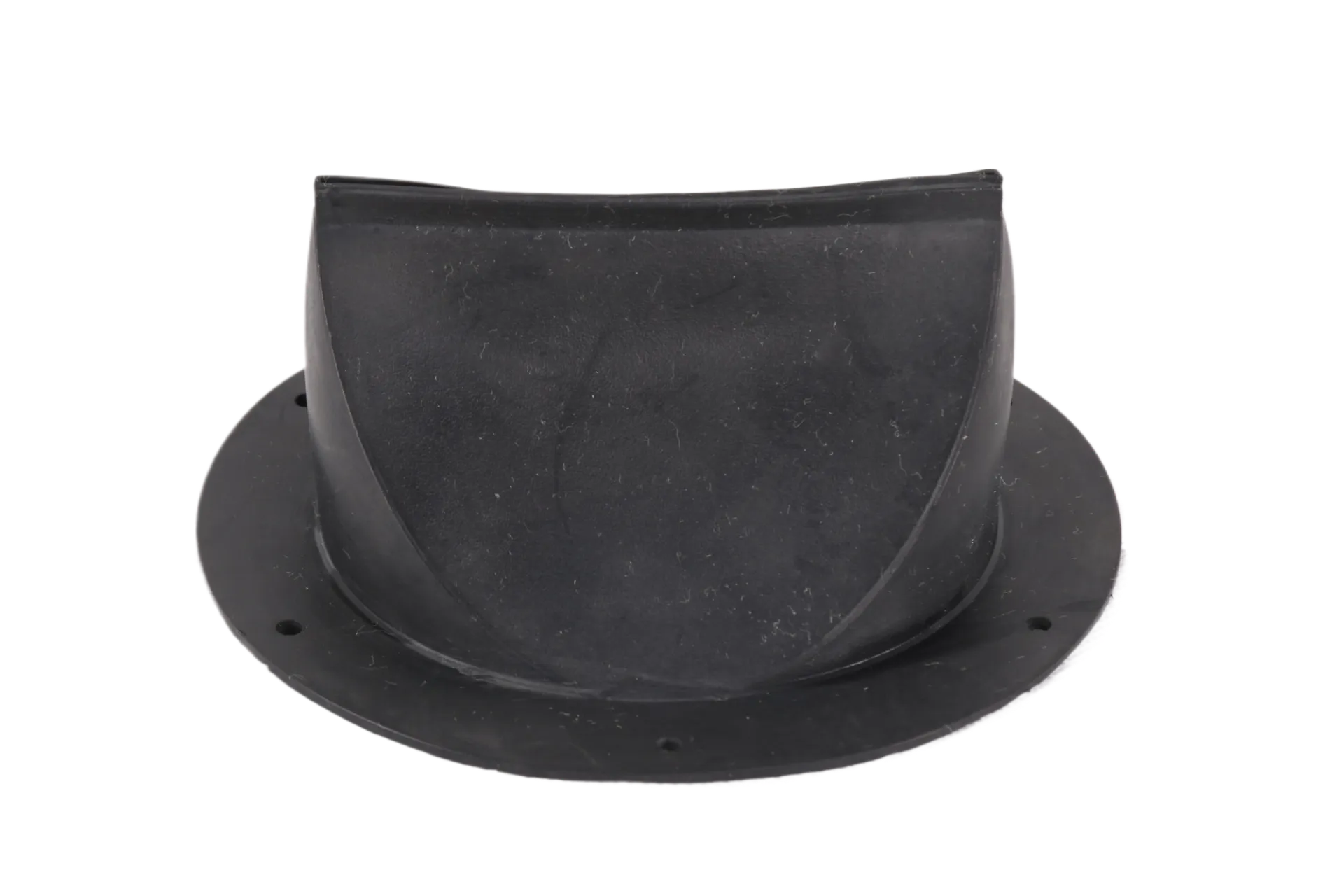

High-Density Polyethylene (HDPE) fittings are integral components within fluid conveyance systems, facilitating the connection of HDPE pipes across a diverse range of industries including municipal water distribution, industrial processing, mining, and agricultural irrigation. Positioned downstream from the polymerization of ethylene, these fittings are characterized by their corrosion resistance, low coefficient of friction, and relative cost-effectiveness. Unlike metallic fittings susceptible to rust and scaling, HDPE fittings maintain internal flow characteristics over extended operational lifespans. Core performance metrics include pressure rating (PN), temperature range, and dimensional accuracy, all influencing system reliability and operational efficiency. The increasing demand for durable, lightweight, and chemically inert piping solutions has solidified HDPE fittings’ role as a key enabler of modern fluid handling infrastructure. A primary pain point within the industry surrounds ensuring long-term joint integrity, specifically mitigating risks associated with thermal expansion/contraction and improper installation techniques leading to leakage or catastrophic failure.
Material Science & Manufacturing
HDPE fittings are predominantly manufactured from high-density polyethylene resin, a thermoplastic polymer produced via the catalytic polymerization of ethylene. The raw material’s molecular weight distribution and density (typically 0.941 to 0.965 g/cm³) are critical parameters affecting the fitting’s physical and mechanical properties. Manufacturing processes vary depending on fitting type and size. Butt fusion welding is prevalent for larger diameter fittings, creating a homogenous weld joint that exhibits strength comparable to the base material. This process involves precisely heating both surfaces of the fitting and pipe, then pressing them together under controlled pressure. Injection molding is commonly used for smaller fittings (e.g., elbows, tees, reducers), where molten HDPE is injected into a closed mold. Extrusion is employed for producing straight lengths and subsequently machining them to create specific fitting configurations. Key parameter control during manufacturing includes melt temperature (typically 180-210°C for injection molding), cooling rate, and weld pressure (for butt fusion). Maintaining consistent resin homogeneity and avoiding overheating during processing are crucial to prevent degradation and ensure optimal performance. Chemical compatibility with the conveyed fluid is also paramount; HDPE exhibits excellent resistance to acids, alkalis, and many solvents, but prolonged exposure to oxidizing agents should be avoided.
Performance & Engineering
The performance of HDPE fittings is heavily influenced by their ability to withstand internal pressure and external loads. Hydrostatic pressure testing, conforming to standards like ASTM D2412, verifies the fitting’s burst pressure and sustained pressure capabilities. Force analysis focuses on hoop stress within the fitting wall, governed by the Barlow formula (σ = PD/2t, where P is pressure, D is diameter, and t is wall thickness). Environmental resistance is critical; while HDPE is inherently resistant to UV degradation, prolonged exposure necessitates the incorporation of UV stabilizers within the resin formulation. Creep, the time-dependent deformation under sustained load, is another consideration, particularly at elevated temperatures. Compliance requirements mandate adherence to relevant standards governing material properties, dimensional tolerances, and performance characteristics. For potable water applications, fittings must meet NSF/ANSI 61 requirements regarding leaching of contaminants. Engineering considerations include accommodating thermal expansion and contraction; HDPE has a significantly higher coefficient of thermal expansion than metallic pipes, necessitating expansion loops or flexible joints to prevent stress concentration and potential failure. Joint integrity, achieved through proper fusion techniques and adherence to established welding procedures, is the most critical aspect of ensuring long-term system performance.
Technical Specifications
| Parameter | Metric (Imperial) | Metric (SI) | Test Standard |
|---|---|---|---|
| Pressure Rating (PN) | 100 psi | 6.9 bar | ASTM D2412 |
| Operating Temperature Range | -40°F to 140°F | -40°C to 60°C | ASTM D1694 |
| Density | 0.945 g/cm³ | 945 kg/m³ | ASTM D1505 |
| Hydrostatic Design Basis (HDB) | 160 psi | 11.03 bar | ASTM D2412 |
| Tensile Strength | 4,000 psi | 27.6 MPa | ASTM D638 |
| Elongation at Break | 300% | 300% | ASTM D638 |
Failure Mode & Maintenance
Common failure modes in HDPE fittings include slow crack growth (SCG), primarily induced by sustained tensile stress in the presence of aggressive chemicals; fatigue cracking resulting from cyclical pressure fluctuations; and mechanical damage from improper handling or installation. SCG is often exacerbated by environmental stress cracking (ESC) caused by exposure to detergents, soaps, and certain solvents. Oxidation, although less common, can occur at elevated temperatures, leading to material degradation. Joint failures frequently stem from insufficient fusion parameters during welding (undercutting, insufficient penetration) or inadequate surface preparation. Delamination can occur in injection-molded fittings due to improper mold cooling or resin flow issues. Maintenance primarily involves visual inspection for cracks, deformation, or leakage. Regular pressure testing can identify potential weaknesses before catastrophic failure occurs. For butt-fused joints, non-destructive testing (NDT) methods like ultrasonic testing can assess weld quality. Preventive maintenance includes protecting fittings from direct sunlight (UV exposure) and avoiding mechanical stress during installation and operation. Corrective action for minor cracks may involve localized repair using compatible HDPE welding rods, although complete replacement is often the preferred solution for significant damage.
Industry FAQ
Q: What is the impact of surge pressure on HDPE fittings and how can it be mitigated?
A: Surge pressure, or water hammer, can induce significant stress on HDPE fittings, potentially leading to cracking or joint separation. Mitigation strategies include the installation of surge arrestors (air chambers or pressure relief valves) to dampen pressure spikes, slow-closing valves to reduce flow velocity changes, and proper pipe anchoring to minimize stress transmission. Selecting fittings with a higher pressure rating than the normal operating pressure provides an additional safety margin.
Q: How does soil corrosivity affect the long-term performance of buried HDPE fittings?
A: While HDPE itself is corrosion-resistant, the surrounding soil environment can indirectly impact performance. Highly corrosive soils can accelerate the degradation of any metallic components associated with the fittings (e.g., bolts, sensors). Proper cathodic protection and the use of corrosion-resistant backfill materials can mitigate these effects. Additionally, soil movement and settlement can induce stress on buried fittings, necessitating adequate bedding and support.
Q: What are the key considerations for selecting the appropriate HDPE fitting material grade for a specific application?
A: Material grade selection should be based on the operating pressure, temperature, and the conveyed fluid. Higher PE3408 or PE4710 grades offer improved strength and resistance to SCG for demanding applications. Compatibility with the fluid is critical; for example, fittings conveying aggressive chemicals may require specialized resin formulations with enhanced chemical resistance.
Q: What are the critical steps to ensure a reliable butt-fusion weld for HDPE fittings?
A: Reliable butt fusion requires proper surface preparation (cleaning and trimming), accurate alignment of the fitting and pipe, precise temperature control during heating, consistent fusion pressure and time, and thorough visual inspection of the weld bead. Qualified operators and calibrated fusion equipment are essential. Records of fusion parameters should be maintained for traceability.
Q: How does UV exposure affect the lifespan of HDPE fittings, and what protective measures can be implemented?
A: Prolonged exposure to UV radiation can cause chain scission in the HDPE polymer, leading to embrittlement and reduced strength. Incorporating UV stabilizers in the resin formulation significantly extends service life. For exposed applications, painting fittings with a reflective coating or burying them below the surface can provide additional protection.
Conclusion
HDPE fittings represent a robust and versatile solution for fluid conveyance, offering significant advantages in terms of corrosion resistance, ease of installation, and long-term durability. Their performance, however, is intrinsically linked to material selection, manufacturing quality, and adherence to proper installation procedures. A comprehensive understanding of the material science underpinning HDPE, coupled with a diligent approach to engineering design and maintenance, is paramount to maximizing system reliability and minimizing the risk of premature failure.
Future developments in HDPE fitting technology are focused on enhancing material properties through the incorporation of nanotechnology and advanced polymer blends, improving joint integrity through automated welding processes, and developing smart fittings with integrated sensors for real-time monitoring of system performance. Continued research and adherence to evolving industry standards will solidify HDPE fittings' position as a cornerstone of modern fluid handling infrastructure.
