Introduction

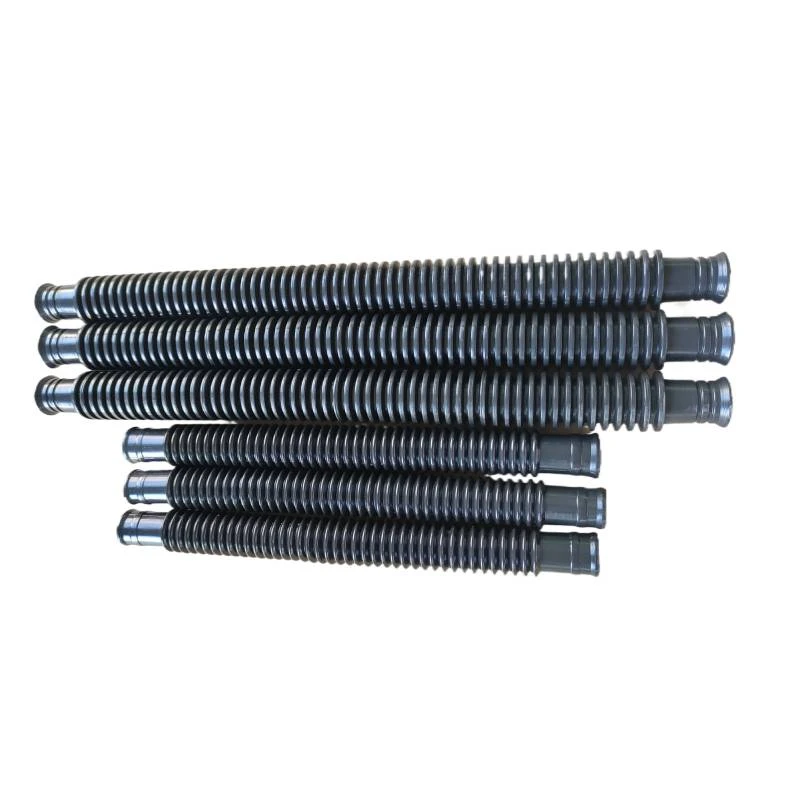

Polyvinyl Chloride (PVC) pipe fittings are integral components in fluid conveyance systems across numerous industries, including potable water distribution, irrigation, wastewater management, chemical processing, and industrial plumbing. These fittings facilitate the connection and redirection of PVC pipes, enabling the creation of complex networks for transporting liquids, gases, and slurries. They represent a significant portion of the broader thermoplastic piping market, chosen for their cost-effectiveness, corrosion resistance, and ease of installation. This guide provides an in-depth technical overview of PVC pipe fittings, encompassing material science, manufacturing processes, performance characteristics, failure modes, and relevant industry standards. The core pain point addressed is ensuring long-term system integrity, mitigating leakage, and complying with stringent regulatory requirements regarding material quality and hydraulic performance. The selection of the appropriate PVC fitting type is critical to avoiding premature system failure and maintaining operational efficiency.
Material Science & Manufacturing
PVC fittings are primarily manufactured from PVC resin, a thermoplastic polymer produced by the polymerization of vinyl chloride monomer (VCM). The base PVC compound is typically blended with stabilizers (e.g., tin stabilizers, calcium-zinc stabilizers), lubricants, impact modifiers (e.g., chlorinated polyethylene - CPE), and processing aids to enhance its performance characteristics. The inherent chemical structure of PVC, consisting of repeating [CH2CHCl]n units, dictates its properties, including its amorphous nature and resistance to many acids, bases, and salts. However, PVC is susceptible to degradation from UV radiation and high temperatures. Manufacturing processes vary depending on the fitting type and size. Injection molding is commonly used for smaller fittings (e.g., couplings, elbows), where molten PVC is injected into a mold cavity. Larger diameter fittings, like wye branches and tees, are often produced via extrusion, followed by cutting and finishing. Socket welding, butt welding, and solvent cementing are common joining methods. Crucially, controlling the melt flow index (MFI) during PVC compound formulation is paramount; higher MFI indicates lower molecular weight and potentially reduced mechanical strength. The cooling rate during molding also influences crystallinity and, consequently, impact resistance. Chemical compatibility with the transported fluid is critical. Exposure to certain organic solvents can cause swelling and degradation of the PVC matrix, leading to leaks and failures.
Performance & Engineering
The performance of PVC pipe fittings is governed by several engineering principles. Hydrostatic pressure testing, conducted according to ASTM D1785, verifies the fitting's ability to withstand internal pressure without rupture or leakage. Impact resistance, assessed using ASTM D2444, determines the fitting’s ability to withstand sudden shock loads, vital for underground installations. Tensile strength and elongation at break, measured per ASTM D638, indicate the material's ability to withstand tensile forces before fracturing. Environmental resistance is a key consideration. Prolonged exposure to ultraviolet radiation causes chain scission and embrittlement, necessitating the use of UV stabilizers. Temperature affects PVC's mechanical properties; its strength decreases at elevated temperatures. The fitting’s geometry influences flow characteristics. Abrupt changes in direction (e.g., 90-degree elbows) introduce flow turbulence, increasing frictional losses and reducing system efficiency. Finite Element Analysis (FEA) is employed to optimize fitting designs, ensuring adequate wall thickness to withstand operating pressures and stresses. Compliance with relevant codes and standards (e.g., NSF/ANSI 61 for potable water systems) is essential to ensure material safety and suitability for the intended application. Long-term creep resistance is important for fittings subjected to sustained loads.
Technical Specifications
| Fitting Type | Material Grade (ASTM D1785) | Pressure Rating (PSI @ 73°F) | Operating Temperature Range (°F) |
|---|---|---|---|
| 90° Elbow | Schedule 40 PVC | 400 | -40 to 140 |
| 45° Elbow | Schedule 40 PVC | 350 | -40 to 140 |
| Coupling | Schedule 40 PVC | 450 | -40 to 140 |
| Tee | Schedule 40 PVC | 400 | -40 to 140 |
| Wye Tee | Schedule 40 PVC | 350 | -40 to 140 |
| Reducer Bushing | Schedule 40 PVC | 400 | -40 to 140 |
Failure Mode & Maintenance
PVC pipe fittings can experience several failure modes in service. Fatigue cracking can occur under cyclic loading, especially at stress concentration points like threaded connections or weld seams. Chemical attack from incompatible fluids can lead to swelling, softening, and eventual failure. UV degradation causes embrittlement and cracking, particularly in exposed applications. Thermal deformation can occur at high temperatures, altering fitting dimensions and compromising seal integrity. Hydrostatic failure results from exceeding the pressure rating, leading to catastrophic rupture. Joint failure occurs due to improper solvent cementing (insufficient solvent, inadequate drying time) or mechanical stress on the joint. Preventative maintenance includes regular visual inspections for cracks, discoloration, or deformation. Protecting fittings from direct sunlight and extreme temperatures extends their service life. Proper solvent cementing techniques are critical; surfaces must be clean, dry, and free of contaminants. Periodically testing the system for leaks is recommended. For fittings exhibiting signs of degradation, replacement is the most reliable corrective action. Proper storage of fittings is also crucial, keeping them away from direct sunlight and extreme temperature fluctuations to prevent premature degradation.
Industry FAQ
Q: What is the impact of soil corrosivity on the long-term performance of buried PVC fittings?
A: Soil corrosivity, specifically the presence of sulfates and chlorides, can indirectly affect PVC fittings. While PVC itself is chemically resistant, corrosive soils can accelerate the degradation of surrounding materials (e.g., metallic bedding or support structures), potentially leading to mechanical stress on the fittings. Additionally, some corrosive soils can contribute to galvanic corrosion of any metallic components used in conjunction with the PVC system, compromising the overall integrity. Proper bedding and backfilling practices, using inert materials, are crucial to mitigate these risks.
Q: How does the choice of solvent cement affect the strength of a PVC joint?
A: The solvent cement acts as a chemical welding agent, partially dissolving the PVC surfaces to create a homogenous bond. The type of solvent cement must be compatible with the PVC resin used in the fittings and pipes. Using an inappropriate cement, or one that has exceeded its shelf life, will result in a weaker joint. Proper application technique – including surface preparation, cement application, and curing time – is also paramount. Follow the cement manufacturer's instructions meticulously.
Q: What are the key differences between Schedule 40 and Schedule 80 PVC fittings in terms of pressure handling capability?
A: Schedule 80 PVC fittings have thicker walls than Schedule 40 fittings. This increased wall thickness results in a higher pressure rating. Schedule 40 is typically rated for up to 400 PSI, while Schedule 80 can handle pressures up to 600 PSI (at 73°F). The choice between the two depends on the operating pressure of the system and applicable safety factors.
Q: What is the effect of prolonged exposure to chlorine on PVC fittings used in water treatment applications?
A: Prolonged exposure to high concentrations of chlorine can cause oxidative degradation of PVC, leading to embrittlement and cracking. The rate of degradation depends on the chlorine concentration, temperature, and exposure duration. Utilizing PVC compounds specifically formulated for chlorinated water applications, incorporating chlorine-resistant stabilizers, is essential. Regular monitoring of fitting condition is also recommended.
Q: What considerations should be made when selecting PVC fittings for use in outdoor, UV-exposed environments?
A: PVC is susceptible to UV degradation. For outdoor applications, fittings should be manufactured with UV stabilizers to protect against chain scission and embrittlement. Darker colored fittings (e.g., black) generally offer better UV resistance than lighter colors. Consider burying fittings where possible, or providing shielding to minimize UV exposure. Regular inspections for signs of cracking or discoloration are recommended.
Conclusion
PVC pipe fittings represent a versatile and cost-effective solution for numerous fluid handling applications. Their performance, however, is intrinsically linked to material selection, manufacturing quality, proper installation, and environmental considerations. Understanding the material science principles governing PVC behavior – including its susceptibility to UV degradation, chemical attack, and thermal deformation – is crucial for ensuring long-term system reliability. Selecting the appropriate fitting type, pressure rating, and material grade for the specific application, coupled with adherence to industry standards and best practices, is paramount to preventing premature failure and maintaining operational efficiency.
Future developments in PVC fitting technology may focus on enhancing UV resistance through improved stabilizer formulations, incorporating nanotechnology to increase mechanical strength, and developing bio-based PVC alternatives to reduce environmental impact. Continuous monitoring of system performance and proactive maintenance programs remain essential for maximizing the service life of PVC pipe fitting installations.
